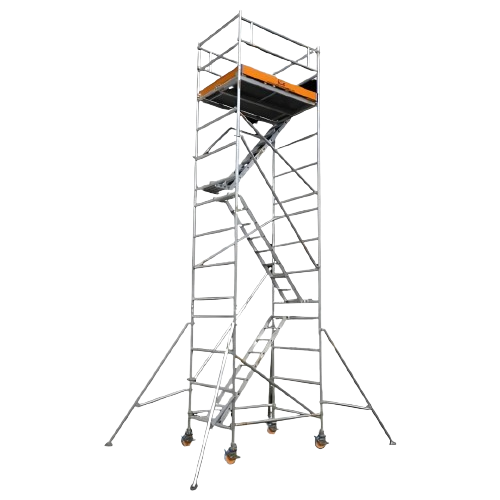

Scaffolding width :1.35m, length : 1.80m

Working height can be extended from 4.4 m to max 18.4 m with standard parts.

Comfortable entry into Scaffolding from outside through wide entry frame.

Anti-slip stairways steps.

200kg/m loading capacity i.e. depending on the platform size from 480 kg to max 810 kg.

The free-standing height for scaffold is 12.4 m inside and 8.4 m outside as per safety norms.

Product Variation

Model	AST034	AST045	AST054	AST065	AST074	AST085	AST094
Working Height(m)	4.4	5.5	6.4	7.5	8.4	9.5	10.4
Tower Height(m)	3.4	4.5	5.4	6.5	7.4	8.5	9.4
Platform Height(m)	2.4	3.5	4.5	5.5	6.4	7.5	8.4

Model	AST105	AST114	AST125	AST134	AST145	AST154	AST165
Working Height(m)	11.5	12.4	13.5	14.4	15.5	16.4	17.5
Tower Height(m)	10.5	11.4	12.5	13.4	14.5	15.4	16.5
Platform Height(m)	9.5	10.4	11.5	12.4	13.5	14.4	15.5

For Pricing and Quotation :

Contact : +91 9100004369 (WhatsApp)

e-mail : googifymeonline@gmail.com

Shipping : All Over India Delivery Available.

International Orders: Welcome for International Orders / Requirements.
